Products:
Glove Box Systems
Glove box systems are designed to physically contain a sample, specimen or product while still allowing someone to work with that material.
The pharmaceutical industry has become interested in containment, and refers to gloveboxes as isolators or barriers.
The biological industry also uses gloveboxes, often refers to them as biological safety cabinets.
Another industry that has recently become interested in gloveboxes is the microelectronics industry, as a means to reduce costs of business by migrating away from cleanrooms.
Research projects in many industries often require the use of glovebox containment.
Isolation Glove Box, used to protect the sample and isolate contamination-sensitive materials in a controlled environment
· Basic glove boxes provide dependable isolation, and may use positive air pressure in the workspace to prevent contamination of the specimen. These can be suitable for aseptic compounding, microelectronics assembly, and various non-hazardous life sciences applications.
· Basic glove boxes provide dependable isolation, and may use positive air pressure in the workspace to prevent contamination of the specimen. These can be suitable for aseptic compounding, microelectronics assembly, and various non-hazardous life sciences applications.
Isolation Glove Box
Containment Glove Box
Containment Glove Box, protect the operator, in terms of hazardous or infectious agents.
·More elaborate closed-loop containment glove boxes (some of which may qualify as class III biological safety cabinets) often maintain a negative pressure in the workspace to prevent hazardous materials from escaping.
·The latter types of glove box systems are suitable for working with any biosafety level 3 or 4 agents, infected animals, or other dangerous materials such as aerosols of pathogens or toxins.
·More elaborate closed-loop containment glove boxes (some of which may qualify as class III biological safety cabinets) often maintain a negative pressure in the workspace to prevent hazardous materials from escaping.
·The latter types of glove box systems are suitable for working with any biosafety level 3 or 4 agents, infected animals, or other dangerous materials such as aerosols of pathogens or toxins.
In Glovebox or Glove compartment contains:
·Built-in arm-length Gloves are used to access and manipulate the sample within the sealed container.
·Airlock, a pass-through chamber used for transfer of objects into and out of a glove box with least disruption of the controlled glove box environment. Also called a Transfer Chamber or Antechamber. Particular airlock ports, such as Bag-In, Bag-Out Ports, further protect the external environment from hazardous vapors or powders inside a Containment Glove Box.
·Built-in arm-length Gloves are used to access and manipulate the sample within the sealed container.
·Airlock, a pass-through chamber used for transfer of objects into and out of a glove box with least disruption of the controlled glove box environment. Also called a Transfer Chamber or Antechamber. Particular airlock ports, such as Bag-In, Bag-Out Ports, further protect the external environment from hazardous vapors or powders inside a Containment Glove Box.
Some glove box systems (either isolation or containment) feature temperature and humidity or static safety controls, the ability to be attached to each other in tandem, and the ability to maintain automatic anaerobic conditions.
Controlled Environment GloveBox
Glove Box Accessories

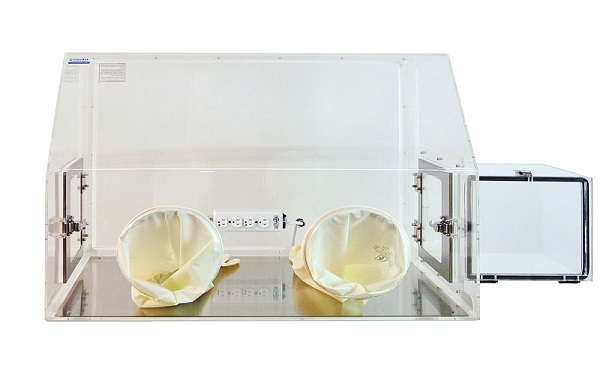

Cleatech's 2100 series Standard size and 2200 Series Portable Glove box Isolators along with an optional “Nitrogen purge control unit” provide a clean Class 1 particle-free environment , low-humidity down to 5% Related Humidity for critical processing operations in such industries as semiconductor and pharmaceutical manufacturing. These Gloveboxes set up for Positive pressure operations.
Cleatech's Gloveboxes are available in four materials: Clear Acrylic, Clear Static-Dissipative PVC, Clear Non-dissipative PVC, Polypropylene.
These economical Glovebox chambers are available with two and four glove ports and could be used with any control modules for humidity / dehumidification and static neutralization.
Cleatech's Gloveboxes are available in four materials: Clear Acrylic, Clear Static-Dissipative PVC, Clear Non-dissipative PVC, Polypropylene.
These economical Glovebox chambers are available with two and four glove ports and could be used with any control modules for humidity / dehumidification and static neutralization.
| • | Gloveboxes available in four materials: acrylic, static-dissipative PVC, nondissipative PVC, polypropylene |
| • | Internal access doors open inward to allow easy parts transfer from inside the Glovbox. All Doors using stainless steel frames that increase the structural rigidity of the door. They feature one-piece Rubber Bulb, Vinyl gasket. |
| • | Standard and pass-through Transfer Chamber minimize nitrogen loss and contamination inflow while parts are placed or removed. The air locks include optional 1/8" NPT Push-to-Connect Gas-in port and an Automatic pressure relief valve. |
| • | Removable fully gasketed back wall for operations involving large equipment |
Glovebox Standard Features;
Isolation Glove Boxes
Standard Options for Isolation Glove Boxes
| • | Automatic Purge Control Unit Accurately Controls Pre-Set Relative Humidity provides a variable nitrogen purge into the glovebox. it provides a continuous low flow purge during normal operation in order to maintain a positive pressure that blocks out contaminants. In the event of the moisture climbs above an adjustable set point, it switches to a higher flow purge to quickly block out entering moisture and contaminants. |
| • | Humidity Control Unit provides automatic low-humidity control capable of measuring and displaying humidities inside the glovebox in the range: 5-100%RH, Accurately Controls Pre-Set Relative Humidity (+/- 2% RH) and purge Nitrogen when the moisture climbs above an adjustable set point. |
| • | Automatic pressure relief Valve provides safe pressure relief |
| • | Power Strip 110VAC/60Hz |
| • | Stainless Steel Work Surface preventing scratching. |
Cleatech's 2300 & 2400 Series Containment HEPA Filtered Glove Boxes, protect the operator, in terms of hazardous or infectious agents.
S-2300 Open Exhaust loop glove boxes draw the ambient room atmosphere through a 99.97% (@ 0.3µm particles) HEPA filter and then into the chamber set up for negative pressure operations.
Second HEPA/ ULPA Filter removes contaminants from the exhaust gas and draws chemical powders or other exhaust particles through a filter to make it safe for indoor release
S-2400 Closed-Loop glove boxes filter inside atmosphere by Continuous Recirculation. The valve lets you set the percentage of fresh air entering the chamber.
Both Configuration includes a 510-CFM adjustable speed impeller blower unit, mounted in a Polypropylene housing.
S-2300 Open Exhaust loop glove boxes draw the ambient room atmosphere through a 99.97% (@ 0.3µm particles) HEPA filter and then into the chamber set up for negative pressure operations.
Second HEPA/ ULPA Filter removes contaminants from the exhaust gas and draws chemical powders or other exhaust particles through a filter to make it safe for indoor release
S-2400 Closed-Loop glove boxes filter inside atmosphere by Continuous Recirculation. The valve lets you set the percentage of fresh air entering the chamber.
Both Configuration includes a 510-CFM adjustable speed impeller blower unit, mounted in a Polypropylene housing.
Containment Glove Boxes
Standard Options for Containment Glove Boxes
| • | Blower Module , Backward curved adjustable speed impeller 510-CFM, Permanently lubricated, Automatic reset thermal overload protection, UL Listed; CSA Certified in a Polypropylen Housing. |
| • | Primary (S-2300 models only) HEPA Filter 99.97% efficient at trapping particles as small as 0.3 microns. Filter media is ultrafine glass fiber, Maximum temperature is 180° with 5 7/8" thick meet UL Class 2 flame retardance requirements. |
| • | Exhaust HEPA Filter 99.97% efficient at 0.3 microns or ULPA 99.999% efficient at 0.12 microns with 3" thick removes contaminants from the exhaust gas to make it safe for indoor release |
| • | Power Strip 110VAC/60Hz |
| • | Stainless Steel Work Surface preventing scratching. |
Glove Box Dimensions
Cleatech's Gloveboxes are available in four materials: Acrylic, Static-Dissipative PVC, Non-dissipative PVC, Polypropylene with two and four glove ports. Blow you can see the dimension of two-port & four-port standard Glove Boxes.
