Ducted Fume Hood | Chemical Resistant
Limit Exposure to Contaminations When Handling Samples
Cleatech’s Polypropylene and Stainless Steel Fume Hoods are designed to ventilate and remove chemical fumes through exterior ducting via the duct port. These chemical resistant exhaust hoods can be placed on any standard workbenches and can be ordered with and without a bottom worksurface. The optional fan system module features an adjustable air speed controller with a backward curved impeller 480-CFM. Please note that the blower module is not rated for acid and corrosive chemicals.
Polypropylene Fume Hood

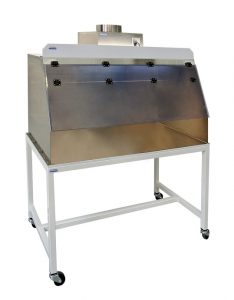

Stainless Steel Fume Hood
| Product Code | Model | Overall Dimensions | Price | Qty |
|---|---|---|---|---|
| 1100-4-A | 24″ Ducted Fume Hood | 24″x24″x25″ | $1,210 | 0 |
| 1100-4-B | 32″ Ducted Fume Hood | 32″x24″x25″ | $1,390 | 0 |
| 1100-4-C | 36″ Ducted Fume Hood | 36″x24″x25″ | $1,530 | 0 |
| 1100-4-D | 48″ Ducted Fume Hood | 48″x24″x25″ | $1,740 | 0 |
| 1100-4-E | 60″ Ducted Fume Hood | 60″x24″x25″ | $2,000 | 0 |
| 1100-4-F | 72″ Ducted Fume Hood | 72″x24″x25″ | $2,360 | 0 |
| Product Code | Model | Overall Dimensions | Price | Qty |
|---|---|---|---|---|
| 1100-6-A | 24″ Ducted Fume Hood | 24″x24″x25″ | $2,170 | 0 |
| 1100-6-B | 32″ Ducted Fume Hood | 32″x24″x25″ | $2,230 | 0 |
| 1100-6-C | 36″ Ducted Fume Hood | 36″x24″x25″ | $2,390 | 0 |
| 1100-6-D | 48″ Ducted Fume Hood | 48″x24″x25″ | $2,550 | 0 |
| 1100-6-E | 60″ Ducted Fume Hood | 60″x24″x25″ | $3,030 | 0 |
| 1100-6-F | 72″ Ducted Fume Hood | 72″x24″x25″ | $3,660 | 0 |
| Product Code | Model | Overall Dimensions | Price | Qty |
|---|---|---|---|---|
| A11-WS-PR24 | 24″ Polypropylene Worksurface | 24″x24″ | $310 | 0 |
| A11-WS-PR32 | 32″ Polypropylene Worksurface | 32″x24″ | $350 | 0 |
| A11-WS-PR36 | 36″ Polypropylene Worksurface | 36″x24″ | $380 | 0 |
| A11-WS-PR48 | 48″ Polypropylene Worksurface | 48″x24″ | $430 | 0 |
| A11-WS-PR60 | 60″ Polypropylene Worksurface | 60″x24″ | $490 | 0 |
| A11-WS-PR72 | 72″ Polypropylene Worksurface | 72″x24″ | $590 | 0 |
| A11-SK-F | Single Fiberglass Utility Sink (Worksurface Required) | — | $380 | 0 |
| A11-SK-F | Two Fiberglass Utility Sink (Worksurface Required) | — | $780 | 0 |
| Product Code | Model | Overall Dimensions | Price | Qty |
|---|---|---|---|---|
| A11-WS-S24 | 24″ Stainless Steel Worksurface | 24″x24″ | $523 | 0 |
| A11-WS-S32 | 32″ Stainless Steel Worksurface | 32″x24″ | $563 | 0 |
| A11-WS-S36 | 36″ Stainless Steel Worksurface | 36″x24″ | $574 | 0 |
| A11-WS-S48 | 48″ Stainless Steel Worksurface | 48″x24″ | $605 | 0 |
| A11-WS-S60 | 60″ Stainless Steel Worksurface | 60″x24″ | $732 | 0 |
| A11-WS-S72 | 72″ Stainless Steel Worksurface | 72″x24″ | $880 | 0 |
| A11-SK-S | Single Counter Top Stainless Steel Sink | — | $785 | 0 |
| A11-SK-S | Two Counter Top Stainless Steel Sinks | — | $1,575 | 0 |
| Product Code | Hood Width | Model | Price | Qty |
|---|---|---|---|---|
| A11-ST-P30H24L | 24″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $670 | 0 |
| A11-ST-P30H24 | 24″ | Epoxy Powder Coated Steel Stand with Caster | $830 | 0 |
| A11-ST-P30H32L | 32″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $740 | 0 |
| A11-ST-P30H32 | 32″ | Epoxy Powder Coated Steel Stand with Caster | $900 | 0 |
| A11-ST-P30H36L | 36″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $780 | 0 |
| A11-ST-P30H36 | 36″ | Epoxy Powder Coated Steel Stand with Caster | $940 | 0 |
| A11-ST-P30H48L | 48″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $830 | 0 |
| A11-ST-P30H48 | 48″ | Epoxy Powder Coated Steel Stand with Caster | $1,000 | 0 |
| A11-ST-P30H60L | 60″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $850 | 0 |
| A11-ST-P30H60 | 60″ | Epoxy Powder Coated Steel Stand with Caster | $1,040 | 0 |
| A11-ST-P30H72L | 72″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $880 | 0 |
| A11-ST-P30H72 | 72″ | Epoxy Powder Coated Steel Stand with Caster | $1,110 | 0 |
| Product Code | Hood Width | Model | Price | Qty |
|---|---|---|---|---|
| A11-ST-P30H24SL | 24″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $760 | 0 |
| A11-ST-P30H24S | 24″ | Epoxy Powder Coated Steel Stand with Caster | $830 | 0 |
| A11-ST-P30H32SL | 32″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $850 | 0 |
| A11-ST-P30H32S | 32″ | Epoxy Powder Coated Steel Stand with Caster | $900 | 0 |
| A11-ST-P30H36SL | 36″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $890 | 0 |
| A11-ST-P30H36S | 36″ | Epoxy Powder Coated Steel Stand with Caster | $940 | 0 |
| A11-ST-P30H48SL | 48″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $950 | 0 |
| A11-ST-P30H48S | 48″ | Epoxy Powder Coated Steel Stand with Caster | $1,000 | 0 |
| A11-ST-P30H60SL | 60″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $990 | 0 |
| A11-ST-P30H60S | 60″ | Epoxy Powder Coated Steel Stand with Caster | $1,040 | 0 |
| A11-ST-P30H72SL | 72″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $1,040 | 0 |
| A11-ST-P30H72S | 72″ | Epoxy Powder Coated Steel Stand with Caster | $1,110 | 0 |
* Stainless Steel worksurface /plate with grounding terminal are available upon request
| Product Code | Hood Width | Model | Price | Qty |
|---|---|---|---|---|
| A11-ST-P35H24L | 24″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $700 | 0 |
| A11-ST-P35H24 | 24″ | Epoxy Powder Coated Steel Stand with Caster | $860 | 0 |
| A11-ST-P35H32L | 32″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $780 | 0 |
| A11-ST-P35H32 | 32″ | Epoxy Powder Coated Steel Stand with Caster | $940 | 0 |
| A11-ST-P35H36L | 36″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $830 | 0 |
| A11-ST-P35H36 | 36″ | Epoxy Powder Coated Steel Stand with Caster | $980 | 0 |
| A11-ST-P35H48L | 48″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $860 | 0 |
| A11-ST-P35H48 | 48″ | Epoxy Powder Coated Steel Stand with Caster | $1,030 | 0 |
| A11-ST-P35H60L | 60″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $890 | 0 |
| A11-ST-P35H60 | 60″ | Epoxy Powder Coated Steel Stand with Caster | $1,090 | 0 |
| A11-ST-P35H72L | 72″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $920 | 0 |
| A11-ST-P35H72 | 72″ | Epoxy Powder Coated Steel Stand with Caster | $1,140 | 0 |
| Product Code | Hood Width | Model | Price | Qty |
|---|---|---|---|---|
| A11-ST-P35H24SL | 24″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $810 | 0 |
| A11-ST-P35H24S | 24″ | Epoxy Powder Coated Steel Stand with Caster | $860 | 0 |
| A11-ST-P35H32SL | 32″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $890 | 0 |
| A11-ST-P35H32S | 32″ | Epoxy Powder Coated Steel Stand with Caster | $940 | 0 |
| A11-ST-P35H36SL | 36″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $930 | 0 |
| A11-ST-P35H36S | 36″ | Epoxy Powder Coated Steel Stand with Caster | $980 | 0 |
| A11-ST-P35H48SL | 48″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $980 | 0 |
| A11-ST-P35H48S | 48″ | Epoxy Powder Coated Steel Stand with Caster | $1,030 | 0 |
| A11-ST-P35H60SL | 60″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $1,030 | 0 |
| A11-ST-P35H60S | 60″ | Epoxy Powder Coated Steel Stand with Caster | $1,090 | 0 |
| A11-ST-P35H72SL | 72″ | Epoxy Powder Coated Steel Stand with Leveling Mount | $1,090 | 0 |
| A11-ST-P35H72S | 72″ | Epoxy Powder Coated Steel Stand with Caster | $1,140 | 0 |
* Stainless Steel worksurface /plate with grounding terminal are available upon request
Accessories
Duct Port
| Option Code | Description | Price | Qty |
|---|---|---|---|
| A11-DU-P6 | 6″ OD Duct Port for Polypropylene Exhaust Hoods | $90 | 0 |
| A11-DU-S6 | 6″ OD Duct Port for Stainless Steel Exhaust Hoods | $380 | 0 |
| A11-DU-P8 | 8″ OD Duct Port for Polypropylene Exhaust Hoods | $90 | 0 |
| A11-DU-S8 | 8″ OD Duct Port for Stainless Steel Exhaust Hoods | $400 | 0 |
| A11-DU-P10 | 10″ OD Duct Port for Polypropylene Exhaust Hoods | $110 | 0 |
| A11-DU-S10 | 10″ OD Duct Port for Stainless Steel Exhaust Hoods | $410 | 0 |
* Up to two duct ports can be ordered for the 48″, 60″ and 72″ fume hoods.
Fan Module
| Option Code | Description | Housing | Price | Qty |
|---|---|---|---|---|
| A11-FM-P120 | Fan Module for Polypropylene Hood, 120VAC, Adjustable Speed, 480 CFM (Duct Port Required) | Polypropylene | $950 | 0 |
| A11-FM-P120 | Two Fan Modules for Polypropylene Hood, 120VAC, Adjustable Speed, 480 CFM Each (Duct Ports Required) | Polypropylene | $1,420 | 0 |
| A11-FM-S120 | Fan Module for Stainless Steel Hood, 120VAC, Adjustable Speed, 480 CFM (Duct Port Required) | Stainless Steel | $1,560 | 0 |
| A11-FM-S120 | Two Fan Modules for Stainless Steel Hood, 120VAC, Adjustable Speed, 480 CFM Each (Duct Ports Required) | Stainless Steel | $2,970 | 0 |
Notes:
Blower Module is not rated for acid and corrosive chemical.
Up to two fan modules can be ordered for the 60″ and 72″ fume hoods.
Air Flow Monitor
| Option Code | Description | Price | Qty |
|---|---|---|---|
| A10-MT-AV | Swing Vane Manometer – Air Velocity Meter | $75 | 0 |
| A10-MT-AA | Airflow Alarm Monitor (Includes a Side Wall or Duct Port Sensor Probe) | $455 | 0 |
| A10-MT-AA3 | Touchscreen Airflow Alarm Monitor (Includes a Side Wall or Duct Port Sensor Probe) | $765 | 0 |
Note: Airflow Alarm Monitor is recommended to improve laboratory fume hood safety.
Base Cabinet
| Option Code | Description | Price | Qty |
|---|---|---|---|
| A11-BC-PU24 | 24″ Under-Table Polypropylene Storage Cabinet Installed under the stands. Nominal dimension 24″W x 24″D x 24″ H with one Hinged door – Not including shelf and exhaust port unless noted. | $990 | 0 |
| A11-BC-PU32 | 32″ Under-Table Polypropylene Storage Cabinet Installed under the stands. Nominal dimension 32″W x 24″D x 24″ H with two Hinged doors – Not including shelf and exhaust port unless noted. | $1,040 | 0 |
| A11-BC-PU36 | 36″ Under-Table Polypropylene Storage Cabinet Installed under the stands. Nominal dimension 36″W x 24″D x 24″ H with two Hinged doors – Not including shelf and exhaust port unless noted. | $1,250 | 0 |
| A11-BC-PU48 | 48″ Under-Table Polypropylene Storage Cabinet Installed under the stands. Nominal dimension 48″W x 24″D x 24″ H with two Hinged doors – Not including shelf and exhaust port unless noted. | $1,410 | |
| A11-BC-PU60 | 60″ Under-Table Polypropylene Storage Cabinet Installed under the stands. Nominal dimension 60″W x 24″D x 24″ H with three Hinged doors – Not including shelf and exhaust port unless noted. | $1,720 | |
| A11-BC-PU72 | 72″ Under-Table Polypropylene Storage Cabinet Installed under the stands. Nominal dimension 72″W x 24″D x 24″ H with three Hinged doors – Not including shelf unless noted. | $1,930 |
Note: A stand will be added to your order when purchasing base cabinets.
Miscellaneous
| Option Code | Description | Price | Qty |
|---|---|---|---|
| A11-LI-P | Externally Mount LED Light, 120V (Recommended For More Visibility) | $165+ | 0 |
| A10-PO-HS4 | Hospital Grade Power Strip (Four Outlets) | $180 | 0 |
Standard Features
- Available in Polypropylene and 304 Stainless Steel for the walls.
- Bottom-less design with mounting flange. Permanent worksurface is optional.
- Front tilt-up sash in AR Polycarbonate for Polypropylene hoods and Static-dissipative PVC for Stainless Fume Hoods.
- Can be equipped with up to 2 optional adjustable speed blowers to ensure a safer exhaust flow.
- Two hinged access shields that increase airspeed by restricting the air flow
- Can be placed on any available work and bench surface.
Specifications
- Wall Construction: Choice of White Polypropylene and 304 Stainless Steel
- Worksurface Construction: Optional worksurface available in Polypropylene and 304 Stainless Steel.
- Front Shield Material: Clear AR Polycarbonate for Polypropylene hoods and transparent Static Dissipative PVC for Stainless Steel hoods.
- Blower Module Adjustable Speed, Backward curved impeller 480-CFM, Permanently lubricated, Automatic reset thermal overload protection, 120VAC, 60Hz, Polypropylene or Stainless Steel Housing.
- Average airflow velocity 90 feet/minutes (FPM)
- Sound level Less than 68 dBA noise level
- Electrical 120VAC/60Hz; consumes 165W; Meets the requirements of the National Electrical Code and applicable local codes. All components UL listed and CE marked.
