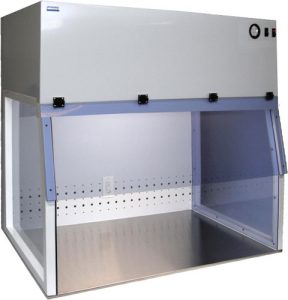

Vertical Laminar Flow Hood

Portable polypropylene laminar flow Hoods provide a space-saving design that can be positioned on nearly any bench. Optional work surfaces available to meet any cleanliness requirement.These vertical laminar flow Hoods are ideal for applications which are not hazardous to the operator but require a clean work area.

Manufacturer: Cleatech | MPN: 1000-2-B | Ready to Ship within 20 days

Start Price: $3,585

Available Options
– 34″ x 27.5″ x 29″ without Stand
– 34″ x 27.5″ x 29″ with Stand

Stands are made of epoxy powder coated steel with 30″ height including casters. (custom height is available)

Options

Available Options

– 46″ x 27.5″ x 29″ without Stand
– 46″ x 27.5″ x 29″ with Stand

Stands are made of epoxy powder coated steel with 30″ height including casters. (custom height is available)

Options

Available Options

– 71.5″ x 27.5″ x 29″ without Stand
– 71.5″ x 27.5″ x 29″ with Stand

Stands are made of epoxy powder coated steel with 30″ height including casters. (custom height is available)

Options

Available Options

– 95″ x 27.5″ x 70″ without Stand
– 95″ x 27.5″ x 70″ – with Stand

Stands are made of epoxy powder coated steel with 30″ height including casters. (custom height is available)

Options

Consists of a Certified Fan Filter module. Meets IEST recommended practices. low sound, low watts Measuring only 50 dBA. Running at only 240 watts @ 90 fpm 490 CFM @ 250 Watts.
Minihelic gauge (0 – 3” Water Column) monitors pressure differential when it exceeds the limit, it indicates the need to replace the HEPA filter(s).

Back Plenum provides air recirculation reduces the percentage of dirty air passed through the filter, overall filter life is extended.

70% of the air from each cycle is recirculated through the supply HEPA filter while the remaining air is discharged from the hood through the exhaust HEPA filter.

Laminar Flow Hoods generate a continuous flow of class 100 HEPA air. 70% of air flow may recirculate back through the filters, causing an extended filter lifetime.

Consisting of a Certified Fan Filter module meets IEST recommended practices. low sound, low watts Measuring only 50 dBA. Running at only 240 watts @ 90 fpm 490 CFM @ 250 Watts.

Minihelic gauge (0 – 3” Water Column) monitors pressure differential when it exceeds the limit, it indicates the need to replace the HEPA filter(s).
Back Plenum provides air recirculation, which reduces the percentage of dirty air passed through the filter, thus extending the overall filter lifetime.

  • Overall Dimension: 49.5″ W x 30″D x 45″H
  • Work Area Dimension”: 46″ W x 27.5″D x 29″H
  • Construction: Polypropylene & powder coated steel structure
  • Side/ Front Windows: Transparent PVC
  • Pre-Filter: Washable polyurethane foam
  • Final Filter: HEPA: 99.99% efficient @ 0.3µm particles
  • Fan Motor: Direct drive, forward curve, centrifugal-type with sealed bearings; rated for continuous duty; furnished with overload protection and a two-speed switch.
  • Average airflow velocity: 90 feet/minutes (fpm)
  • Air Flow: 650 4-Feet Model; 480 3-Feet Model
  • Sound Level: 50 dBA, measured no more than 30” from filter face @ 90 FPM
  • Electrical: 110VAC, 50/60Hz Meets the requirements of the National Electrical Code and applicable local codes. All components UL listed and CE marked
  • Performance: Particle count exceeds Class 100 requirements.
  • ULPA Filter 99.999% efficient at 0.12µm particles
  • Swing Vane Manometer- Air Velocity Meter
  • Hospital Grade Dual Power Outlet- Bulit-in
  • Polypropylene Work Surface
  • Stainless Steel Work Surface
  • Stand with Caster for Vertical Laminar Flow Hoods, Epoxy Powder Coated Steel, 30″Height
  • UV-C Sanitation light
